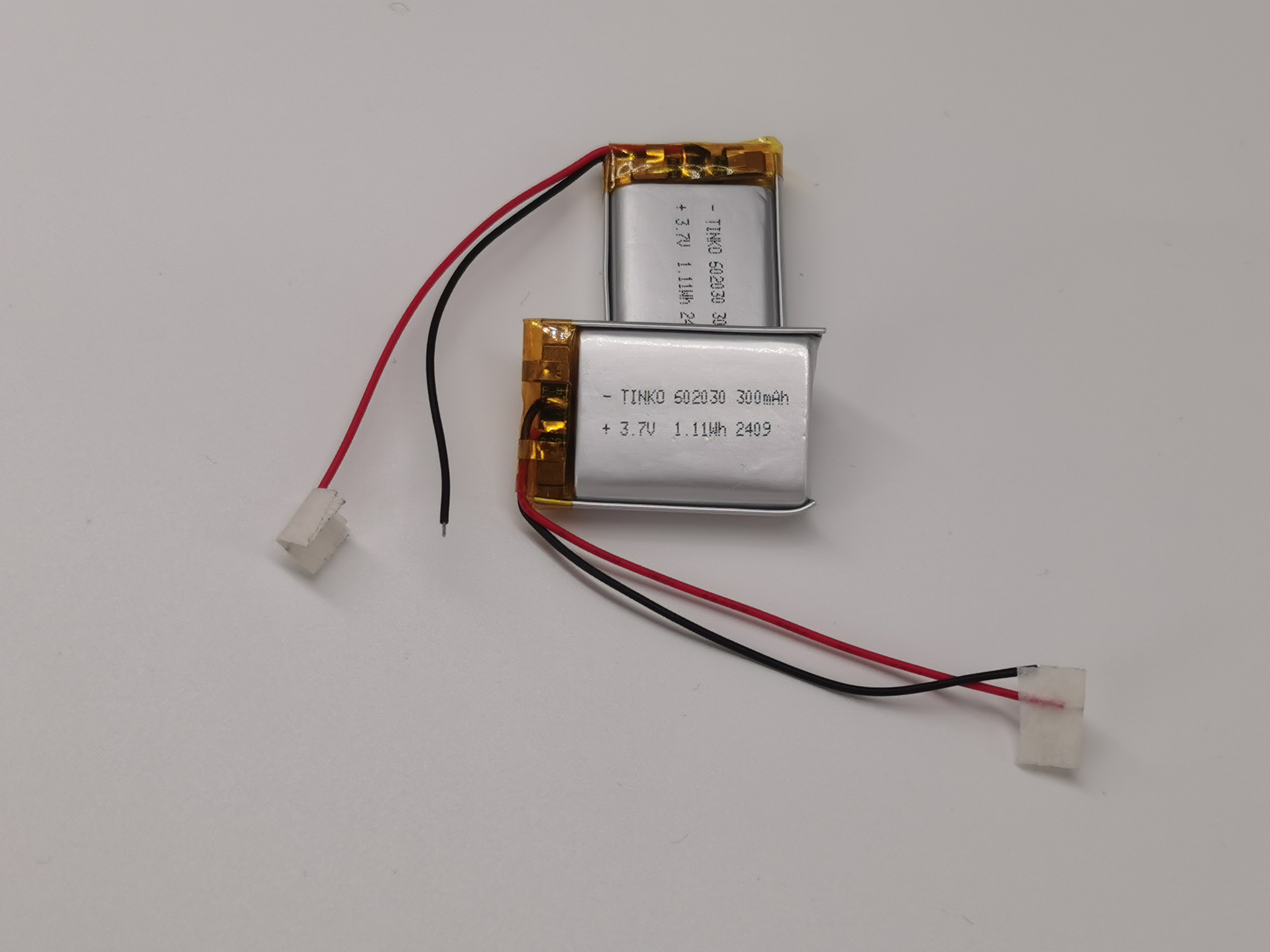

Powerful Li Polymer Battery 3.7V 602030 300mAh for Lighting Device And Electric Toys

Dongguan KunTeng New Energy Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Powerful Li Polymer Battery 3.7V 602030 300mAh for Lighting Device And Electric Toys from wholesalers

    Buy cheap Powerful Li Polymer Battery 3.7V 602030 300mAh for Lighting Device And Electric Toys from wholesalers
    • Buy cheap Powerful Li Polymer Battery 3.7V 602030 300mAh for Lighting Device And Electric Toys from wholesalers
    • Buy cheap Powerful Li Polymer Battery 3.7V 602030 300mAh for Lighting Device And Electric Toys from wholesalers
    • Buy cheap Powerful Li Polymer Battery 3.7V 602030 300mAh for Lighting Device And Electric Toys from wholesalers

    Powerful Li Polymer Battery 3.7V 602030 300mAh for Lighting Device And Electric Toys

    Ask Lasest Price
    Brand Name : TINKO/OEM
    Model Number : 602030
    Certification : CE/ROHS/MSDS/UN38.3
    • Product Details
    • Company Profile

    Powerful Li Polymer Battery 3.7V 602030 300mAh for Lighting Device And Electric Toys

    Rechargeable 300mah Lithium-ion Polimer Battery 3.7V 602030 for Portable Devices


    Product Description
    Lithium polymer battery, also known as LiPo, LIP, Li-polymer, lithium-poly battery, is a type of rechargeable lithium-ion battery that use the polymer electrolyte instead of a liquid one, which made possible by the use of high conductivity semisolid (gel) polymers.
    Lithium polymer batteries come with a set of benefits that make them highly appealing for many applications. One of their most significant advantages is their form factor. Li-polimer batteries are lightweight and can be made into almost any shape, providing flexibility for device design. This is particularly useful for consumer electronics like smartphones and laptops where space and design are key factors.This kind of battery is lightweight and can be made into almost any shape you want, providing flexibility for device design. This is particularly useful for consumer electronics like smartphones and laptops where space and design are key factors. Besides, they are less likely to suffer from electrolyte leakage, as they use a polymer electrolyte instead of a liquid one. They also have a low self-discharge rate, which makes them a convenient option for many electronic devices.


    Product Parameters


    No.


    Items


    Criteria


    Remarks



    1


    Typical capacity

    300 mAh

    From 4.20V discharge 3.00V by 1.0C



    2


    Min Capacity

    300 mAh

    3


    Energy

    1. 11Wh

    4


    Open Circuit Voltage

    3.85-3.95.


    5


    Internal Impedance

    ≤ 100 mΩAC 1 KHz after standard charge

    6


    Standard Charge Method

    Charging to 4 . 2 0 V with constant current at 0 . 5 C initially and then with constant voltage till charge current declines to 0 . 0 1 C.

    7


    Standard Discharge Method

    Discharge to 3.00V with constant current at 0.5C.

    8


    Fully charge voltage( FC)

    4.20VDefined in this DOC:FC= 4.20V

    10


    Fully discharge voltage( FD)

    3.00VDefined in this DOC:FD= 3.00V

    9


    Discharge cut-off voltage

    ≥2.75V

    10

    Continuous Charge Current



    60 mA (0.2C)

    0℃ ~ 45℃


    300 mA ( 1.0C) MAX

    15℃ ~ 45℃

    11

    Continuous Discharge Current


    60 mA (0.5C)

    -10℃ ~ 60℃


    300 mA ( 1.0C) MAX

    10 ℃ ~ 50℃

    12

    Storage Temperature


    - 10℃ ~ +35℃

    Less than 1 month


    0℃ ~ +30℃

    Less than 6 months
    + 10℃ ~ +25℃


    Less than 12 months


    15

    Storage Humidity≤ 75% RH


    Product Drawing



    Item


    Description



    Dimension and Spec.


    TThickness≤ 6.0 mm
    WWidth≤20.0 mm
    HHeight≤ 30.5 mm
    ACell Tab Length7.0±1.0 mm
    BCell Tab Pitch6.0±2.0 mm
    CCell Tab Width3.0±0.2 mm
    DPackage Width3.5±0.5 mm



    Applications


    More PICS
